VET ENERGY Technology Co., Ltd. is a high-tech enterprise established in China. We are a professional supplier and manufacturer of Carbon Graphite Plates Artificial Battery Graphite Bipolar Plate For Hydrogen Fuel Cell. We are focusing on advanced technology material and renewable energy products.we are focusing on new material technology and automotive products.
We have developed cost- effective graphite bipolar plates for PEMFC which requires the use of advanced bipolar plates with high electrical conductivity and good mechanical strength. Our bipolar plates allow fuel cells to operate at high temperatures and have excellent electrical and thermal conductivity.
We offer the graphite material with impregnated resin in order to achieve gas impermeability and high strength. But the material retains the favorable properties of graphite in terms of high electrical conductivity and high thermal conductivity.

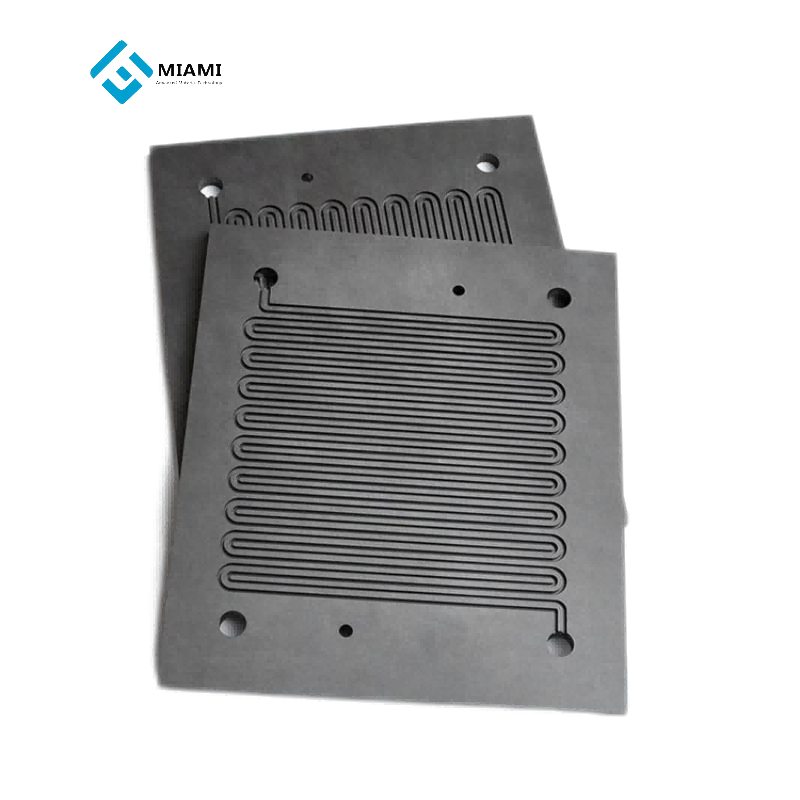

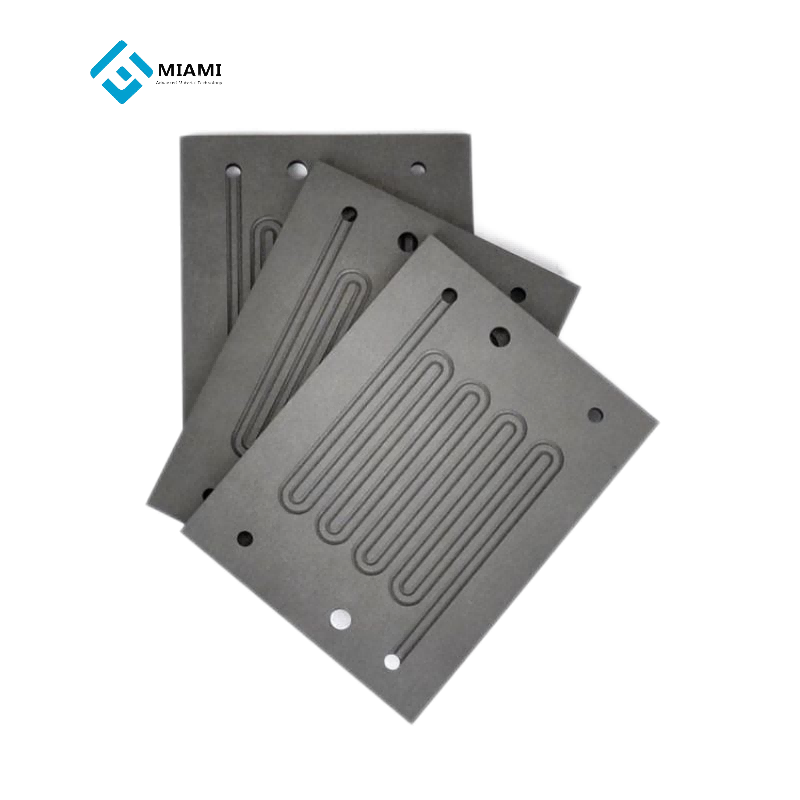

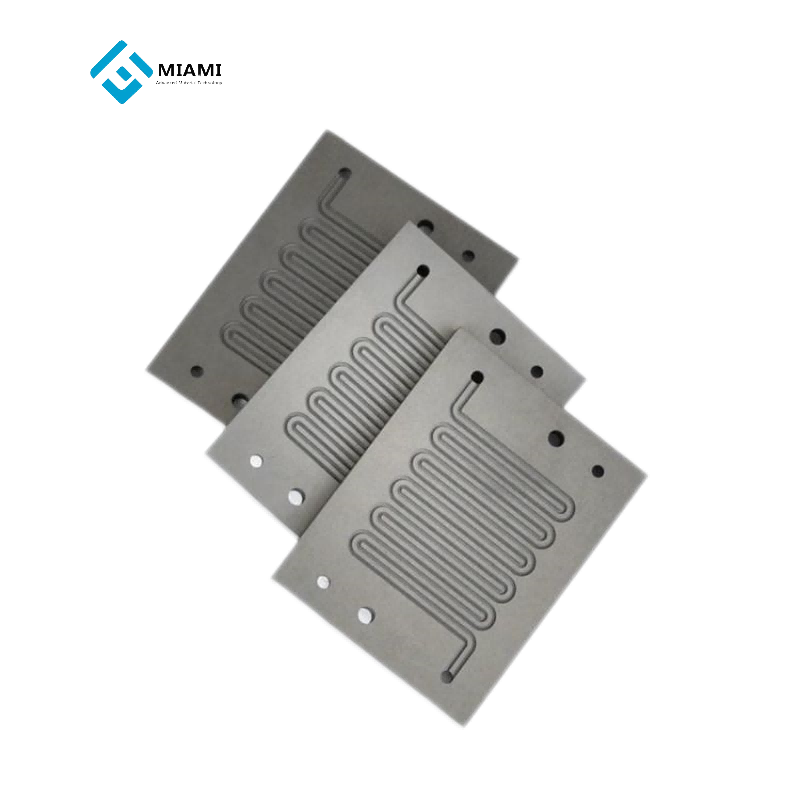

We can machine the bipolar plates on both sides with flow fields, or machine single side or provide unmachined blank plates as well. All graphite plates could be machined as per your detailed design.
The Carbon Graphite Plates Artificial Battery Graphite Bipolar Plate For Hydrogen Fuel Cell made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Carbon Graphite Plates Artificial Battery Graphite Bipolar Plate For Hydrogen Fuel Cell with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.
Features:
- Impermeable to gases ( hydrogen and oxygen)
- Ideal electrical conductivity
- A balance between conductivity, strength, size and weight
- Resistance to corrosion
- Easy to produce in bulk Features:
- Cost-effective
Grade of Graphite Material |
||||||||
Material Name |
Type No |
Bulk Density |
Specific Resistance |
Flexural Strength |
Compressive Strength |
Ash Max |
Particle size |
Processing |
g/cm3 |
μΩm |
Mpa |
Mpa |
% |
Max |
|
||
Electrode Graphite |
VT-RP |
≥1.55~1.75 |
7.5~8.5 |
≥8.5 |
≥20 |
≤0.3 |
≤8~10mm |
Impregnation Optional |
Vibration Graphite |
VTZ2-3 |
≥1.72 |
7~9 |
≥13.5 |
≥35 |
≤0.3 |
≤0.8 mm |
Two Impregnation Three Baking |
VTZ1-2 |
≥1.62 |
7~9 |
≥9 |
≥22 |
≤0.3 |
≤2 mm |
One Impregnation Two Baking |
|
Extruded Graphite
|
VTJ1-2 |
≥1.68 |
7.5~8.5 |
≥19 |
≥38 |
≤0.3 |
≤0.2 mm |
One Impregnation Two Baking |
Molded Graphite |
VTM2-3 |
≥1.80 |
10~13 |
≥40 |
≥60 |
≤0.1 |
≤0.043 mm |
Two Impregnation Three Baking |
VTM3-4 |
≥1.85 |
10~13 |
≥47 |
≥75 |
≤0.05 |
≤0.043 mm |
Three Impregnation Four Baking |
|
Isostatic Graphite |
VTD2-3 |
≥1.82 |
11~13 |
≥38 |
≥85 |
≤0.1 |
2μm, 6μm, 8μm, 15μm,etc… |
Two Impregnation Three Baking |
VTD3-4 |
≥1.88 |
11~13 |
≥60 |
≥100 |
≤0.05 |
≤0.015 mm |
Three Impregnation Four Baking |
Application for different graphite products
Product Name |
Industry |
Application |
Crucible,Boat,Dish,etc. |
Metallurgy |
Melting,refining and analysis |
Dies,Molds,Ingot Chassis,etc. |
EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine |
|
Graphite Roller,etc. |
Heat treatment of steel plate in furnace |
|
Conduit,Skateboard,etc. |
Aluminum molding |
|
Graphite Pipe |
Guard pipe for measuring temperature,blowpipe,etc |
|
Graphite Block |
Masonry furnace and other heat resistance material |
|
Chemical Equipment |
Chemistry |
Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc |
Electrolytic Plate |
Salt solution and baking molten salt electrolyte |
|
Electrolytic Mercury |
NaCI electrolyte |
|
Grounded Anode |
Electrical anticorrosion |
|
Motor Brush |
Electricity |
Commutator,slipping ring |
Current Collector |
Skate,slide,trolley |
|
Contact |
Switches,relays |
|
Mercury Ferry And Electronic Pipe |
Electronics |
Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode |
Graphite Bearing |
Machinery |
High temperature resistance sliding bearing |
Sealing Element |
Sealing ring,stuffing box seal,packing seal |
|
Product Element |
Braking in plane and vehicle |
|
Nuclear Graphite |
Nuclear Power |
Deceleration materials,reflective materials,shielding materials,nuclear fuel,support devices,etc |
