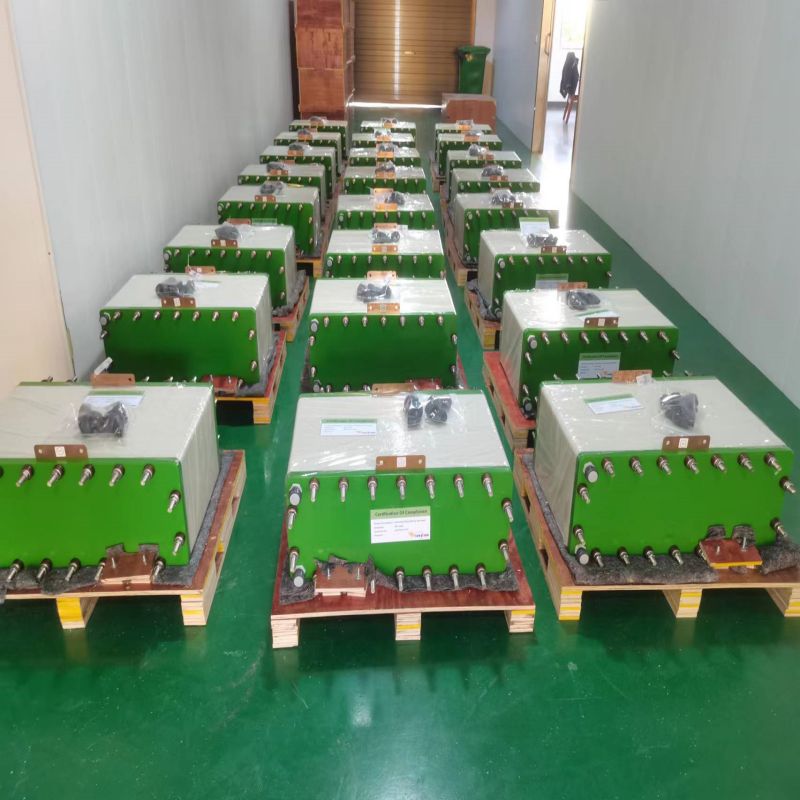

5kW VRFB Stack Module for ESS

VET ENERGY 5kW Vanadium Redox Flow Battery Stack is a core component for a system designed for high-performance and long-duration energy storage applications. Featuring excellent cycle life, modular scalability, and safety, this stack is ideal for integration in renewable energy systems, commercial ESS solutions, and off-grid applications.

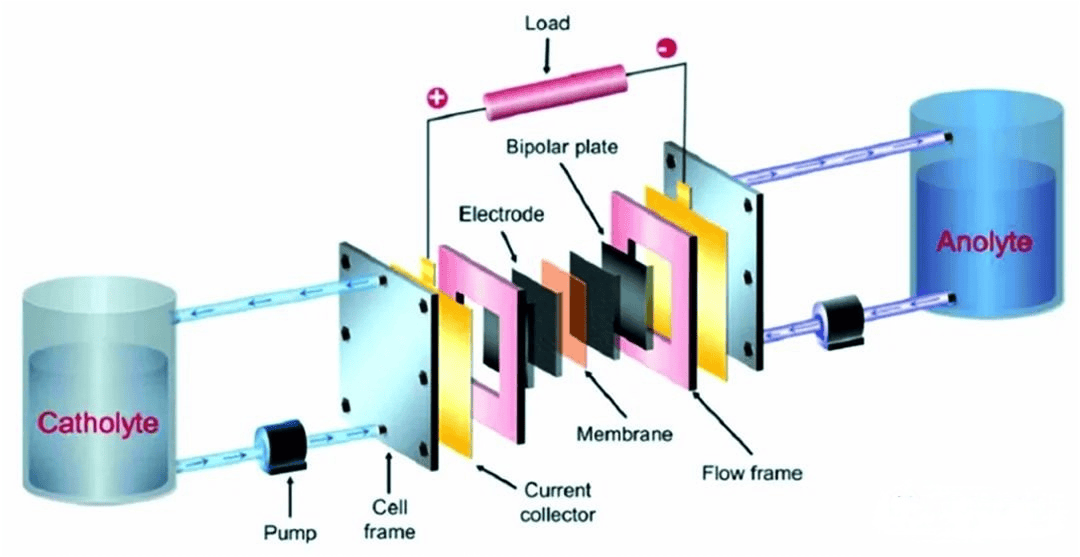

VRFB Stack Structure

A VRFB stack typically consists of multiple repeating units called single cell, each formed by a membrane, bipolar plates, electrode materials, current collector. These cells are clamped together between end plates to form the stack. Electrolyte flows through internal channels, enabling redox reactions that store and release energy efficiently.

How do vanadium battery work?

Technical Specifications

Applications

Renewable Energy Storage: Stores excess energy from solar and wind, releasing it during peak demand to stabilize the grid.

Microgrids: Balances power supply and demand in remote areas, ensuring stable power.

Grid Management: Supports load balancing and frequency regulation for improved grid reliability.

Research Purposes: long-duration energy storage, system optimization, and renewable energy integration.

Large-Scale Storage: Combined to form larger systems for power balancing and energy management.

Vanadium flow batteries are favored for their durability, quick response, and environmental adaptability.

Interest more VET VRFB Stack details?

Contact us today for detailed 5kW VRFB Stack Module for ESS specifications, pricing, and customization options. VET ENERGY is always ready to support your diverse application needs.
