Lab-Scale Vanadium Redox Flow Battery (3W/20W/100W)

VET ENERGY introduces the VRFB Single Cell Experimental Flow Battery System, Lab-Scale Vanadium Redox Flow Battery (3W/20W/100W). Designed for scientific research and technology development, this system offers high energy conversion efficiency, stable performance, and modular design for applications in laboratory research, education, and small-scale energy storage testing.

Send Inquiry

Product Description

The VET ENERGY VRFB Single Cell Experimental Flow Battery System is a compact vanadium redox flow battery (VRFB) designed for scientific research and laboratory applications. It features high cycle life, excellent safety, and suitability for long-term experimental studies. Welcome to send an inquiry to VET ENERGY to learn more details about Small Power Flow Battery.

Small-Scale VRFB Energy Storage System with three power levels (3W, 20W, 100W), this system provides a stable and high-efficiency platform for energy storage experiments, electrochemical studies, and educational purposes.

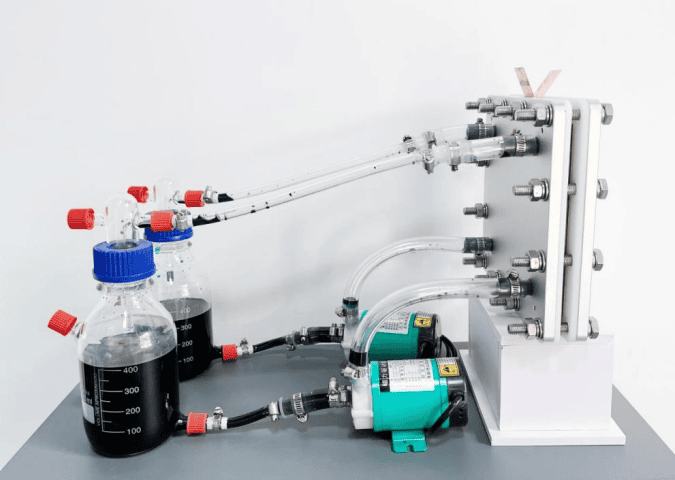

VRFB Single Cell Experimental Flow Battery System

Key Features:

✔ High Efficiency: DC energy efficiency ≥80%

✔ Customizable: Supports different experimental parameters to meet various research needs

✔ Safe & Eco-Friendly: Water-based electrolyte has no risk of explosion, is recyclable, pollution-free and has a long lifespan

✔ Complete Set: Includes a single cell, electrolyte pumps, electrolyte storage tanks, and pipelines

Technical Specifications

Specification	3W	20W	100W
Membrane Size	107mm × 82mm	170mm × 185mm	170mm × 185mm
Battery Size	12cm × 15cm × 8cm	22.5cm × 21cm × 8cm	22.5cm × 21cm × 8cm
Electrode Size	4cm × 4cm	12.5cm × 8cm	12.5cm × 8cm
Rated Power	3W	20W	100W
Rated Current Density	180mA/cm²	180mA/cm²	180mA/cm²
Voltage Range	DC 0.8V-1.6V	DC 0.8V-1.6V	DC 0.8V-1.6V
Electrolyte Flow Rate	>50mL/min	>250mL/min	>250mL/min
Pump Rated Flow	350mL/min	350mL/min	350mL/min
Energy Efficiency	DC ≥80%	DC ≥80%	DC ≥80%
Operating Temperature	20-40℃	20-40℃	20-40℃
Electrolyte	60mL	300mL	300mL

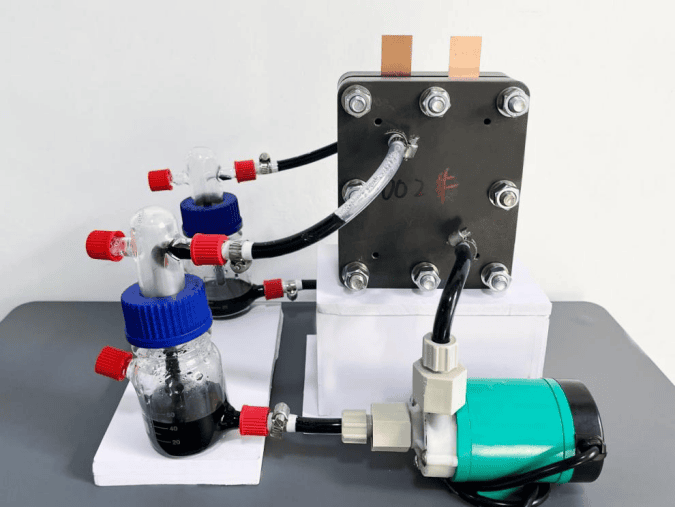

Small-Scale VRFB Energy Storage System

What's Included in the Package?

✔ Single Cell Unit (Clamps, Current Collector, Flow Frame, Bipolar Plate, Proton Exchange Membrane, Graphite Felt Electrode)

✔ Electrolyte Storage Tanks (100mL ×2 for 3W, 500mL ×2 for 20W/100W)

✔ Electrolyte Pumps (2 units)

✔ Electrolyte Pipeline System

Lab Experimental Flow Battery

Applications

Laboratory Research – Electrochemical studies, energy storage, battery research, material science experiments

Education & Training – Academic and university experiments

Energy Storage Simulation – Small-scale testing for VRFB development

For more Lab-Scale Vanadium Redox Flow Battery (3W/20W/100W) details, inquiries, or customization requests, reach out to VET ENERGY.
