Product Description

CHIVET is one of the famous China 2000W Air Cooling Fuel Cell Stack for UAV manufacturers and suppliers.

This hydrogen fuel cell stack for UVA is featured with 950w/kg power density.

Our lightweight, power-dense UAV fuel cell modules allow customers to bypass the constraints of traditional battery technology, significantly extending drone flight times and ranges while producing clean DC power in a robust and lightweight package



Our drone Fuel Cell Power Modules (FCPMs) are ideal for a wide range of professional commercial applications, including offshore inspection, search and rescue, aerial photography and mapping, precision agriculture and more.

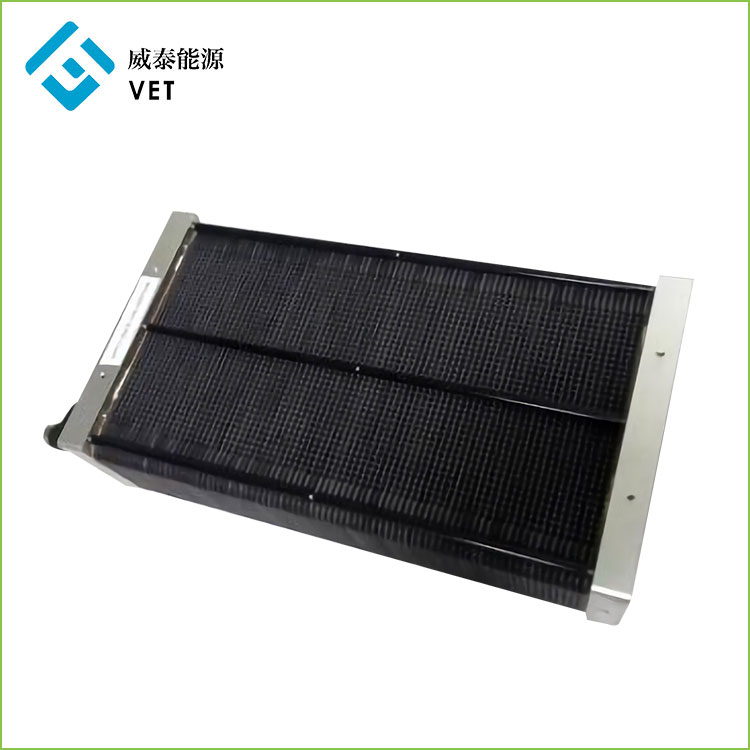

2000W Air Cooling Fuel Cell Stack for UAV


1.Product Introduction

•This hydrogen fuel cell stack for UVA is featured with950w/kg power density.

•Operation on dry hydrogen and ambient air

• Robust metal Full cell construction

• Ideal for hybridisation with battery and/or super-capacitors

• Proven durability and reliability for

• Multiple configuration options providing modular and scalable solutions

• Range of stack options to fit different applicationrequirements

• Low thermal and acoustic signature

• Series and parallel connections possible


2000W Air Cooling Fuel Cell System

Fuel cell system includes: stack, power management unit, fan, solenoid valve, temperature sensor, temperature and humidity Sensor and control software



2kw Air Cooling Fuel Cell system Diagram


Structure diagram of Fuel Cell system


2.Product Parameter (Specification)

2.1 2000W Air Cooling Fuel Cell Stack Parameter


This fuel cell stack is featured with 950w/kg power density.

It can be used on light weighted, low power consumption applications or on portable power source.

The small size does not limit it to small applications.

Multiple stacks can be connected and scaled up under our proprietary BMS technology to support high power consumption applications.

H-48-2000 Parameters

Output Parameters

Rated Power

2000W

Rated Voltage

51V

Rated Current

39A

DC Voltage Range

48-85V

Efficiency

≥50%

Fuel Parameters

H2 Purity

≥99.99%(CO<1PPM)

H2 Pressure

0.045~0.07Mpa

H2 Consumption

28.5L/min

Ambient Parameters

Operating Ambient Temp.

-5~35℃

Operating Ambient Humidity

10%~95%

Storage Ambient Temp.

-10~50℃

Noise

≤50 [email protected]

Physical Parameters

FC Stack

24.2(L)*14.9(W)*6.9(H)

FC Stack

2.1KG

Dimensions(cm)

Weight (kg)

System

24.2(L)*15.5(W)*22.9(H)

System

3.7KG

Dimensions(cm)

Weight(kg)

(including fans and BMS)

Power Density

800W/L

Power Density

950W/KG

by Volume

by Weight



2kw Stack polarization curve


2.2 Fuel cell system components

2.2.1 Key auxiliary components (BMS)--Fuel cell management system

The special power management system for hydrogen powered UAV stack can realize the remote control and information acquisition of fuel cell system. it can be intelligent hybrid with secondary battery, and also adaptive charge for secondary battery, It is a core technology in the field of fuel cell battery application.



2.2.1 Standard parameters of Chivet2022 fuel cell management system









Performance

input

Maximum input current at FC end

80A

Maximum input voltage at FC end

80V

Maximum input current of hybrid battery end

80A

Maximum input voltage of hybrid battery end

80V

Four channel temperature input end

-60℃-150℃

One channel ambient temperature and humidity input end

-60℃-150℃,RH30~100%

Two channel pressure input end

0-100MPa

Two channel speed pulse signal receiving end

Used to measure the speed of the fan or pump

















Performance output

Hybrid output current

Maximum 80A for long-term operation, instantaneous peak value150A(5min)

Maximum voltage of hybrid output end

80V

Two PWM pulse width speed regulation output

0 ~ 100% speed regulation, control cooling air

Fan or cooling circulating pump.

One humidification power output

Voltage 5V, maximum current 5A

One cooling fan power output

Voltage 12V ~ 36V, maximum current

10A

Power output of one cooling circulating water pump

Voltage 12V ~ 36V, maximum current

10A

Power output of one-way stack gas inlet solenoid valve

Voltage 12V ~ 36V, maximum current 3A

Power output of one-way stack gas outlet solenoid valve

Voltage 12V ~ 36V, maximum current 3A

External load power output

Voltage 12V ~ 36V, maximum current 6A

Flight control power output

Voltage 12V ~ 48V, maximum current 3A

Stand by power output port

Maximum current 5A

Two communication ports

485/TTL















Supporting software functions

Display: fuel cell voltage, current, output power and temperature; Hybrid Electric

Cell voltage, charge discharge current and output power; Total output power of the system; environment

Temperature and humidity; Cooling fan speed; Pressure of hydrogen storage tank and gas pressure in battery

power

Constant current or fuel cell performance adaptive charging can be selected, and the maximum charging current is 25A (the charging module is equipped with cooling fan)

Control: gas inlet and outlet solenoid valves; Secondary battery charging mode and charging

Current value, charging condition setting; Setting of cooling fan speed and temperature control conditions

Fixed; Setting of cooling water pump speed and temperature control conditions; Gas pressure sensor

Environmental characteristics

Working Temperature

-45-60℃

Humidity of working environment

0-100%

Humidity of storage environment

-75℃-75c

Physical parameters

size

160*120*45mm

Weight

480g



2.2.2 Hydrogen storage bottle

Working pressure

35MPa

volume

12L

size

D196*L532

weight

3.85KG

lifetime

Inflate and deflate 500 times



2.2.3 Solenoid valve

Rated voltage

DC24V

Rated current

120+-15%mA

Pressure range

0-90Kpa

power

<2w

working temperature

0C-55℃

weight

50g

lifetime

Switch 100000 times





2.2.4 Cooling fan





Rated power

57.6w DC48V/1.2A


working temperature

-20℃-70℃

speed

14900R/min

size

91*91*38mm

Rate of flow

5.1m3/min

noise

40dB

lifetime

70000h/40℃



2.2.5 Control system cooling small fan

Rated power

1.44w DC24V/0.06A

speed

5000R/min

size

30*30*10mm

weight

8g

noise

16dB

lifetime

28000h/40℃



Product application and working principle



Development of drone power pack that PEM fuel cell

(Operates at temperatures between -10 ~ 45ºC)



Our drone Fuel Cell Power Modules (FCPMs) are ideal provide power for a wide range of professional UAV commercial applications,including offshore inspection UAV, search and rescue UAV , aerial photography and mapping UAV , precision agriculture UAV and more.



Fuel cells use electrochemical reactions to produce electricity without combustion. Hydrogen fuel cells combine hydrogen with oxygen from the air, emitting only heat and water as by-products. They are more efficient than internal combustion engines, and unlike batteries, do not need recharging and will continue to operate as long as they are provided with fuel.


Our drone fuel cells are air-cooled, with heat from the fuel cell stack conducted to cooling plates and removed through airflow channels, resulting in a simplified and cost-effective power solution.


One of the main components of hydrogen fuel cell is graphiteBipolar plate. In 2015,VET entered the fuel cell industry with its advantages of producing graphite Bipolar plates.Founded company Miami Advanced Material Technology Co., LTD.


After years of research and development, vet have mature technology for producing air cooling 10w-6000w Hydrogen fuel cells,UAV hydrogen fuel cell 800w-3000w, As for the biggest energy storage problem of new energy, we put forward the idea that PEM converts electric energy into hydrogen for storage and hydrogen fuel cell generates electricity with hydrogen. It can be connected with photovoltaic power generation and hydropower generation.
