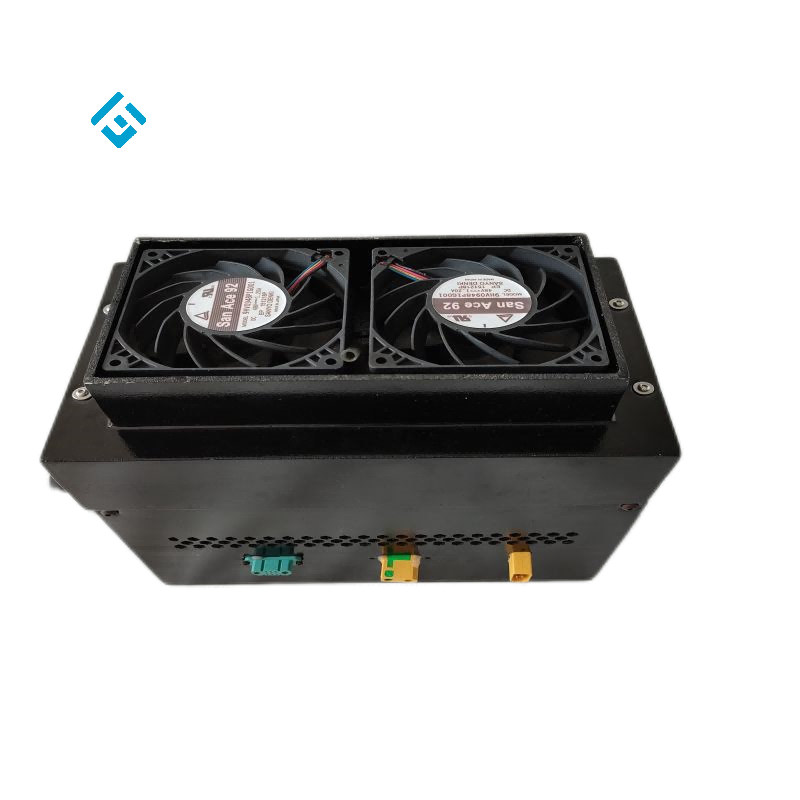

Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stack
  • Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stackSmall volume 48v air cooled 1.5kw uav hydrogen fuel cell stack

Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stack

Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional suppl Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stack ufacturer and supplier. we are focusing on new material technology and automotive products.

Send Inquiry

Product Description

The Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stack made in China from Vet Energy, which is one of the manufacturers and suppliers in China. Buy Small volume 48v air cooled 1.5kw uav hydrogen fuel cell stack with low price from our factory. We have our own brands and we also support bulk. If you are interested in our products, we will give you the cheap price. Welcome to buy discount product which is newest and high-quality from us.

1500W Hydrogen Fuel Cell Stack



1.Product Introduction

Stack is the core part of hydrogen fuel cell, which is composed of alternately stacked  bipolar plates, membrane electrode mea, seals and front/rear plates. Hydrogen fuel cell takes hydrogen as clean fuel and converts hydrogen into electric energy through electrochemical reactionin the stack.



1500W hydrogen fuel cell stack can produce 1500W of nominal power and brings you full energy independence for various applications that require power in the range of 0-1500W.



UAVs, drones, robotics applications and other unmanned vehicles, soldier power, portable power, and various other military/civilian applications can use this product as a quiet and highly efficient electrochemical power generator in order to improve the operational time or flight time or generate power in the field where there is no grid infrastructure.


2. Product Parameter

Output Performance

Nominal Power

1500 W

Nominal Voltage

 48 V

Nominal Current

31 A

DC Voltage Range

 47 - 74 V

Efficiency

 >50% at the nominal power



Hydrogen Fuel

Hydrogen Purity

 >99.99% (CO content <1 ppm)

Hydrogen Pressure

 0.04 - 0.06 MPa

Hydrogen Consumption

 16.8L/min (at nominal power)



Environmental Characteristics

Ambient Temperature

 -5 to +35 ºC

Ambient Humidity

 10% RH to 95% RH (No misting)

Storage Ambient Temperature

 -10 to +70 ºC

Noise

 <60 dB



Physical Characteristics

Stack size

 370*170*150mm

Stack weight

 5.0kg

Controller size

 155*105*55mm

Controller weight

 1.0kg

Total weight

 6.0kg

3.Product Feature And Application

Product features:

Many product models and types

It can be customized according to customer requirements

Good environmental adaptability and adapt to various weather changes

Light weight, small volume, easy to install and move



Applications:

Back-up power

Hydrogen bicycle

Hydrogen UAV

Hydrogen vehicle

Hydrogen energy teaching aids

Reversible hydrogen production system for power generation

Case display



4.Product Details

A controller module that manages the startup, shutdown, and all other standard functions of the fuel cell stack. A DC/DC converter will be required to convert the fuel cell power into the desired voltage and current .



This portable fuel cell stack can be easily connected with a high purity hydrogen source such as a compressed cylinder from a local gas supplier, hydrogen stored in a composite tank, or a compatible hydride cartridge to get the best performance.

VET Technology Co., Ltd is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of automotive and new energy parts, mainly dealing in motor series, vacuum pumps, fuel cell&flow battery, and other new advanced material.

Over the years, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. We have continuously achieved new breakthroughs in product manufacturing process equipment automation and semi-automated production line design, which enables our company to maintain strong competitiveness in the same industry.

With R & D capabilities from key materials to end application products, the core and key technologies of independent intellectual property rights have achieved a number of scientific and technological innovations. By virtue of stable product quality, the best cost-effective design scheme and high-quality after-sales service, we have won the recognition and trust from our customers.

Q: Are you trading company or manufacturer?

A:We are an more than 10 vears factory with iso9001 certificacted

Q:How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock,or 10-15 days if the goods are not in stock, it is according to your quantity.

Q: How can Iget the sample to check your quality?

A: After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality,we will provide you sample for free as long as you afford the express freight.

Q:What is your terms of payment?

A: We accept payment by Western union,Pavpal,Alibaba,T/TL/Cetc..for bulk order,we do 30% deposit balance before shipment.

if you have another question,pls feel free to contact us as below
