20W Hydrogen Fuel Cell Stack

Vet Energy is one of the famous China 20W Hydrogen Fuel Cell Stack manufacturers and suppliers. Our factory specializes in manufacturing of 20W Hydrogen Fuel Cell Stack. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

Send Inquiry

Product Description

CHIVET is one of the famous China 20W Hydrogen Fuel Cell Stack manufacturers and suppliers.

VET Energy is a national high-tech enterprise specializing in the research and development, production, sales and service of fuel cell parts,such as fuel cell stack, membrane electrode assembly, bipolar plate, electrolyzer, fuel cell system, catalyst, BOP part, carbon paper and other accessories.

Over the years, passed ISO 9001:2015 international quality management system, we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications. we can customize the fuel cell according to each our customer’s requirements.

We will whole heartedly provide you with professional, excellent service and high-quality products with price advantages.


20W Hydrogen Fuel Cell Stack



1.Product Introduction

Stack is the core part of hydrogen fuel cell, which is composed of alternately stacked  bipolar plates, membrane electrode mea, seals and front/rear plates. Hydrogen fuel cell takes hydrogen as clean fuel and converts hydrogen into electric energy through electrochemical reaction in the stack.



20W hydrogen fuel cell stack can produce 20W of nominal power and brings you full energy independence for various applications that require power in the range of 0-20W.



You can charge your smartphone, radios, small fans, bluetooth headphones, small portable cameras, LED flashlights, small battery modules, various camping devices, and many more other portable devices.



2. Product Parameter

Output Performance

Nominal Power

 20 W

Nominal Voltage

 12 V

Nominal Current

 1.67 A

DC Voltage Range

 11 - 20 V

Efficiency

 >50% at the nominal power



Hydrogen Fuel

Hydrogen Purity

 >99.99% (CO content being <1 ppm)

Hydrogen Pressure

 0.04 - 0.06 MPa

Hydrogen Consumption

 234 mL/min (at nominal power)



Environmental Characteristics

Ambient Temperature

 -5 to +35 ºC

Ambient Humidity

 10% RH to 95% RH (No misting)

Storage Ambient Temperature

 -10 to +70 ºC

Noise

 <60 dB



Physical Characteristics

Stack Size

 118*50*52 mm

Stack weight

 0.32kg



3.Product Feature And Application

Product features:

Many product models and types

It can be customized according to customer requirements

Good environmental adaptability and adapt to various weather changes

Light weight, small volume, easy to install and move


Applications:

Back-up power

Hydrogen bicycle

Hydrogen UAV

Hydrogen vehicle

Hydrogen energy teaching aids

Reversible hydrogen production system for power generation

Case display



4.Product Details

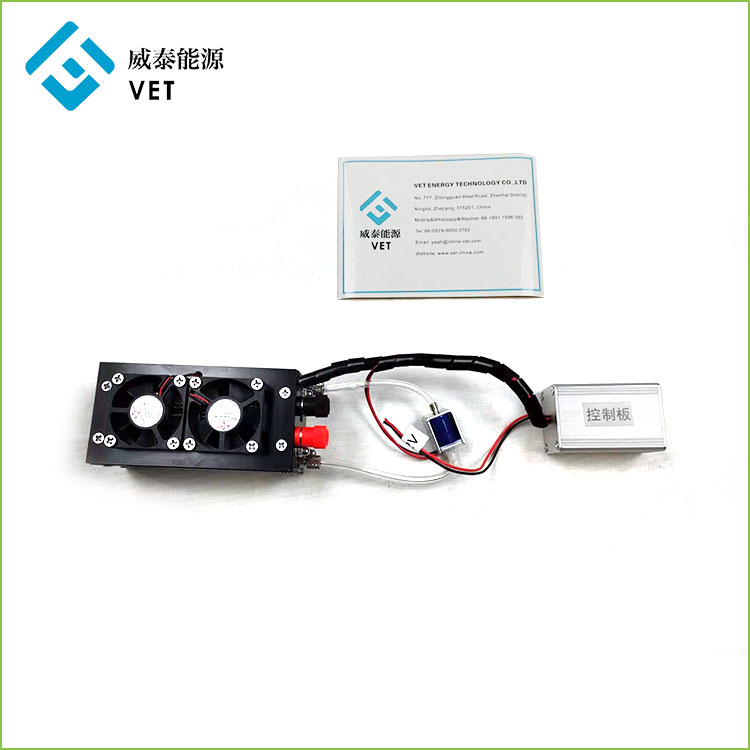

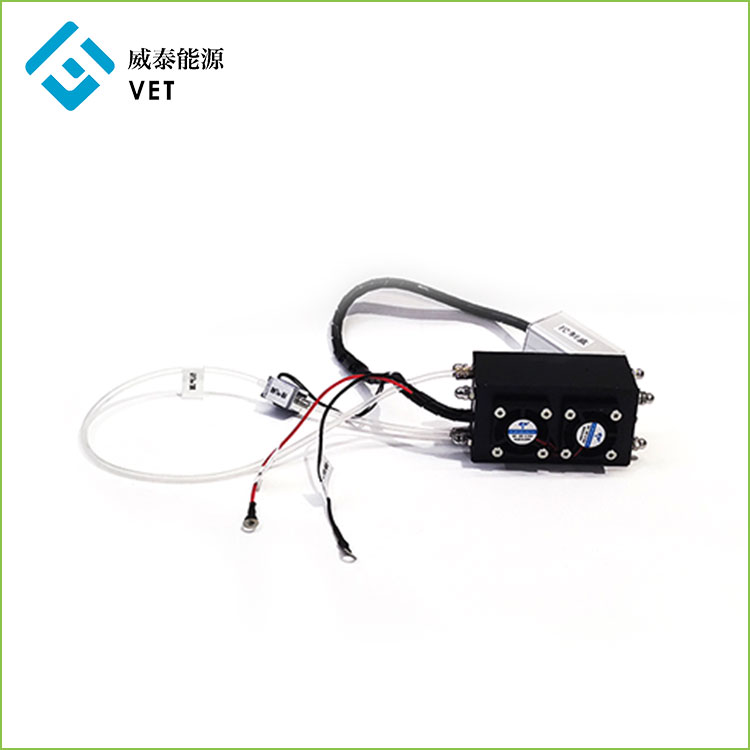

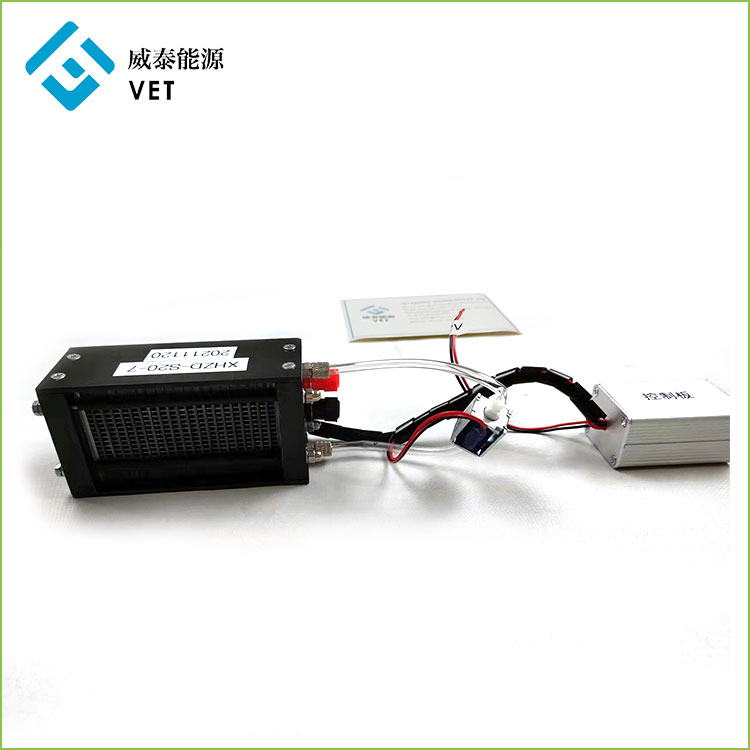

A controller module that manages the startup, shutdown, and all other standard functions of the fuel cell stack. A DC/DC converter will be required to convert the fuel cell power into the desired voltage and current .



This portable fuel cell stack can be easily connected with a high purity hydrogen source such as a compressed cylinder from a local gas supplier, hydrogen stored in a composite tank, or a compatible hydride cartridge to get the best performance.


Fuel cell stack constructure:


Applications for hydrogen fuel cell:



More products we can supply:
