Hydrogen Oxygen MEA
  • Hydrogen Oxygen MEAHydrogen Oxygen MEA
  • Hydrogen Oxygen MEAHydrogen Oxygen MEA
  • Hydrogen Oxygen MEAHydrogen Oxygen MEA
  • Hydrogen Oxygen MEAHydrogen Oxygen MEA
  • Hydrogen Oxygen MEAHydrogen Oxygen MEA

Hydrogen Oxygen MEA

Vet Energy is one of the famous China Hydrogen Oxygen MEA manufacturers and suppliers. Our factory specializes in manufacturing of Hydrogen Oxygen MEA. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

Send Inquiry

Product Description

Hydrogen Oxygen MEA

CHIVET is afuel cell components manufacturerthat specializes in high performance customfuel cell and electrolyzer componentsfor product manufacturers, researchers and educators around the world.

We offer the widest selection in hydrogen fuel cell stack,Membrane Electrode Assemblies(MEA),Catalyst Coated Membranes(CCM),Gas Diffusion Electrodes(GDE) ,Gas Diffusion Layers(GDL), Bipolar plate, Catalysts,Membranes and so on, as well as the newest products and technologies from renowned international vendors.



our ultimate destination is the best provider of hydrogen energy and fuel cell products and technical solutions in the world.



History of CHIVET

Founded in China,Zhejiang in 2007,was originally part of one of the oldest and most recognized fuel cell bipolar plate in the China, operating as Hexcarbontech’s Commercial Fuel Cell Components Division..As a part of Hexcarbontech, the division manufactured and sold bipolar plate commercially for more than 10 years. We offer the most diverse and expansive fuel cell and electrolyzer components on the web, including products catering to educational, research and testing, and industrial applications. In 2017, the current operating management of the division negotiated an exclusive license with Hexcarbontech to transition the division into an independent company – CHIVET company relocated to Zhejiang pro., to allow for faster and cheaper distribution throughout the China and world.



CHIVET Services: Customization, Quality, Customer Service

Customization– CHIVET is unique among other competingfuel cell companiesin that our products are 100% custom for our customers. Any part of our hydrogen fuel cell can be customized according to customers' needs, such as size, weight, power, voltage, etc.. .

Quality– Our process complies with ISO9001 standards but, more importantly, our customers around the world have found our fuel cell and electrolyzer components to be consistently of the highest quality in their real life applications. Some of our customers use our fuel cell and electrolyzer components as their gold standard when developing or testing their own products because they know they can rely on our consistent high quality.

Customer Service–We believe that customer service is the most expansive selection of our business, This means providing excellent customer service, offering the fastest delivery time possible, and ensureing that every customer is satisfied with their purchase. We are continually looking to improve our services so feedback from our customers and vendors are always welcome.




Hydrogen Oxygen MEA


1.Product Introduction

CHIVET has developed a proprietary process which supports rapid and accurate delivery of customized Hydrogen Oxygen Membrane Electrode Assemblies (MEAs) and Catalyst Coated Membranes (CCMs). Our experienced staff is able to satisfy a variety of requirements meeting stringent specifications. We manufactures exact quantities according to any requested specifications we receive.Any size can be customized.

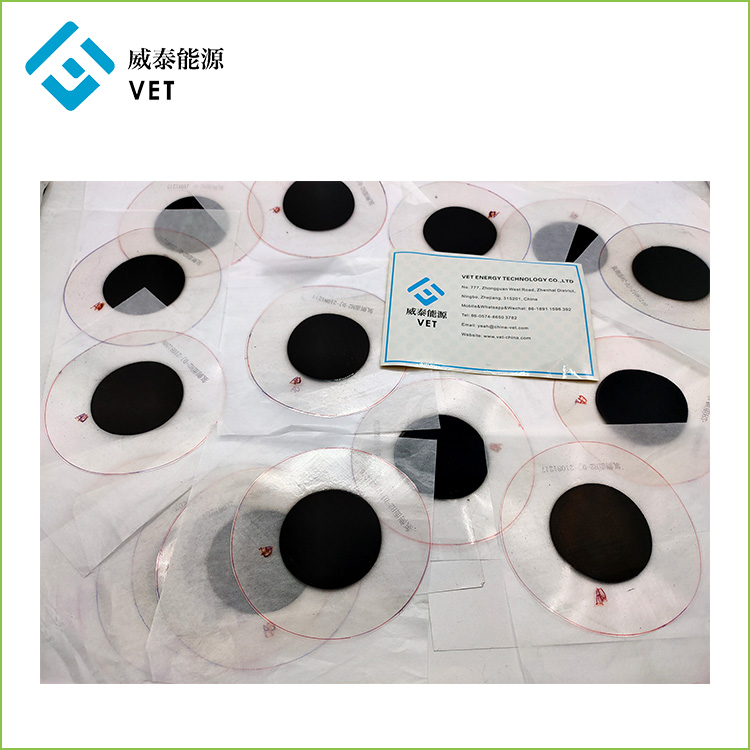

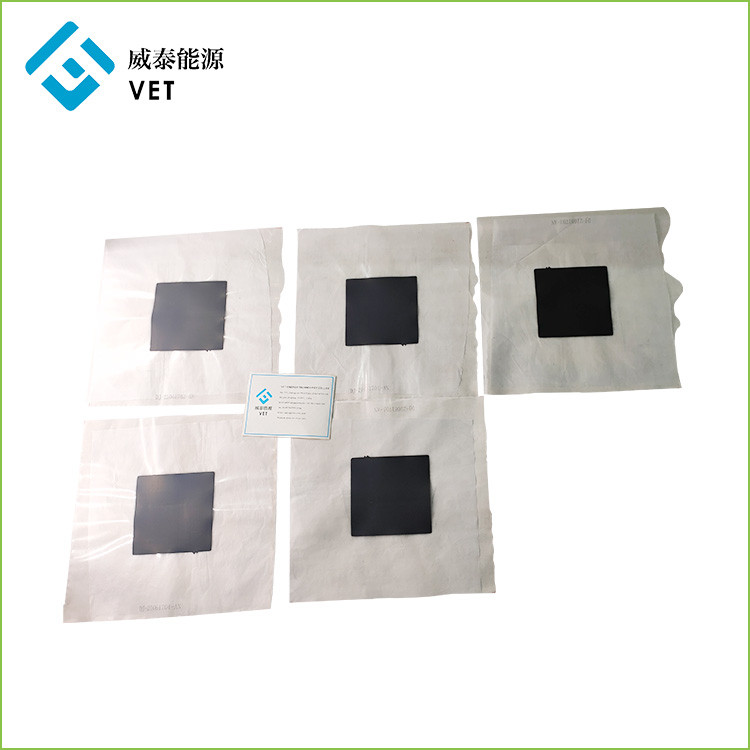

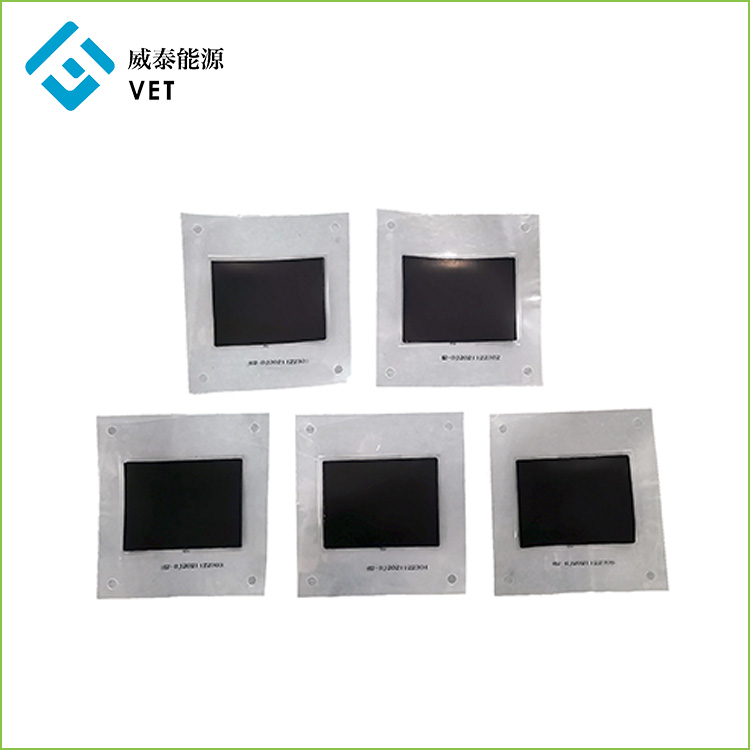

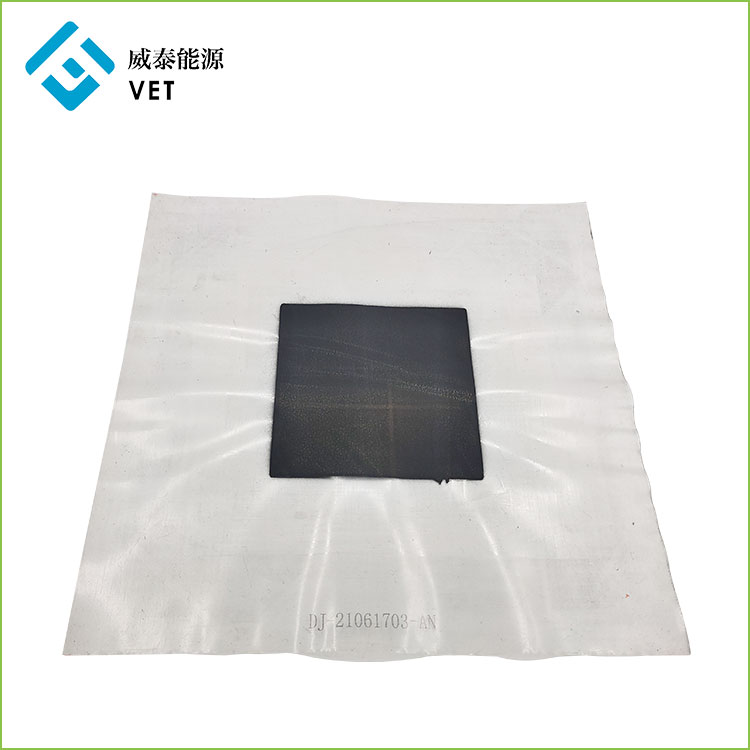

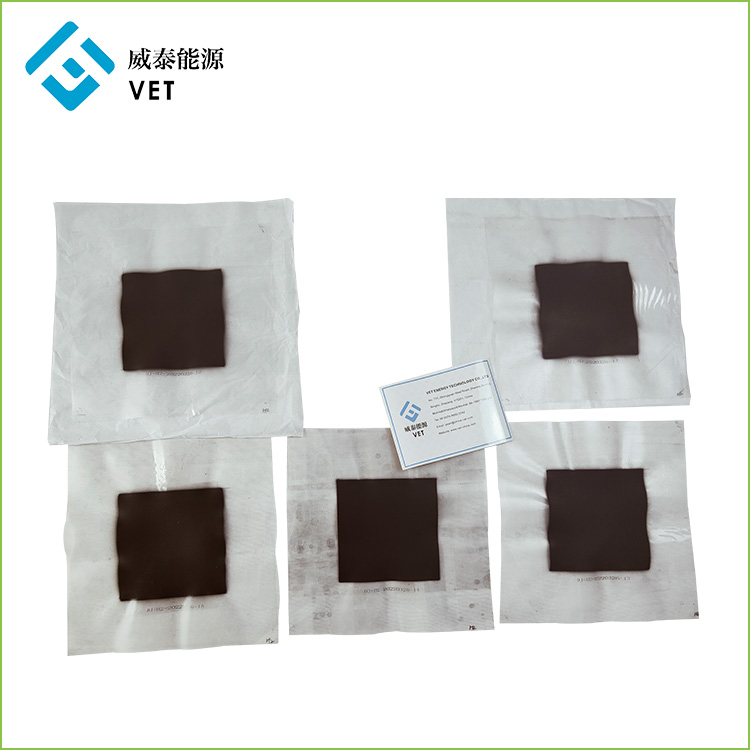

1.1   Hydrogen Oxygen MEA - 5 Layer: High performance Membrane Electrode Assembly (MEA) where performance and efficiency is critical. They can be used in Hydrogen/Air or Hydrogen/Oxygen Fuel Cells. The most economical high performance MEA on the market, the standard configuration features a high Platinum loading (4 mg/cm²) and a 0.005” membrane (Nafion® 115) with a 365 um thick carbon cloth GDL (others available). Custom sizes and configurations are also available with no minimum order quantities and typical lead times of 1 to 5 days, even for custom configurations. These Hydrogen Oxygen MEAs are 5-Layer.


1.11 5-Layer Membrane Electrode Assembly (MEA) Product Parameter (Specification)

Membrane

Type

Nafion™ 115

Thickness (mil)

5

Catalyst

Anode Catalyst

Pt - Platinum Black

Anode Loading

4 mg/cm²

Cathode Catalyst

Pt - Platinum Black

Cathode Loading

4 mg/cm²

Gas Diffusion Layer

Anode GDL

GDL-CT

Cathode GDL

GDL-CT

Fiber Type

Cloth

Thickness (microns)

365



1.2  The 3-layer or Catalyst Coated Membrane (CCM) version of our popular 5-layer H2/Air this High performance Membrane Electrode Assembly (MEA) is used where performance and efficiency is critical and you need a free-floating GDL layer. It can be used in Hydrogen/Air or Hydrogen/Oxygen Fuel Cells. The standard configuration features a high Platinum loading (4 mg/cm²) and a 0.005” membrane (Nafion™ 115). Custom sizes and configurations are also available with no minimum order quantities and short lead times even for custom configurations.



1.21  Hydrogen Oxygen CCM - 3 Layer  Product Parameter (Specification)

Membrane

Type

Nafion™ 115

Thickness (mil)

5

Catalyst

Anode Catalyst

Pt - Platinum Black

Anode Loading

4 mg/cm²

Cathode Catalyst

Pt - Platinum Black

Cathode Loading

4 mg/cm²

Gas Diffusion Layer

Anode GDL



Cathode GDL



Fiber Type



Thickness (microns)





1.3 custom 5-layer Membrane Electrode Assemblies (MEA)

Instant on-line quotes for custom 5-layer Membrane Electrode Assemblies (MEA) with integrated Gas Diffusion Layers (GDL). Customize dimensions, membrane thickness, Anode and Cathode catalyst loadings, or even make single sided MEAs and see the price updated instantaneously with each change. Perfect for microbial MEA testing, MEAs for chemical processes, or other specialized uses. The customized MEA can then be purchased immediately with a single click and is typically shipped within 1 – 3 business days.



2.Product Feature And Application

1.Polymer Electrolyte Fuel Cells
2.Hydrogen/Oxygen Air Fuel Cells



4.Product Details

Our MEA can be Available to PEMFC & DMFC,Compared with our peers, our advantages are as follows:


1.CARBON SUPPORT DURABILITY

PEMFC & DMFC MEA (25 cm2) single-cell carbon corrosion AST (Accelerated Stress Test) results show CHINVET’s carbon support durability is better than competitor’s.



2.CATALYST DURABILITY

PEMFC/ MEA (25 cm2) single-cell catalyst durability AST(Accelerated Stress Test) results show VINATech’s catalyst durability is better than competitor’s.



3.MEA COATING TECHNOLOGY

CHIVET can evenly distribute catalysts within electrodes using their own MEA coating technology.

Because of its MEA coating technology, it can improve long-term reliability and very little variation among MEA.



4.MEA COATING TECHNOLOGY

Available to PEMFC & DMFC

High reliability and durability

High performance at any environments

Customized layer (CCM, 5, 7)
