Ningbo VET Energy Technology Co., Ltd. is a high-tech enterprise established in China, We are professional supply Miniature four-wheel Hydrogen Power Vehiele ufacturer and supplier. we are focusing on new material technology and automotive products.

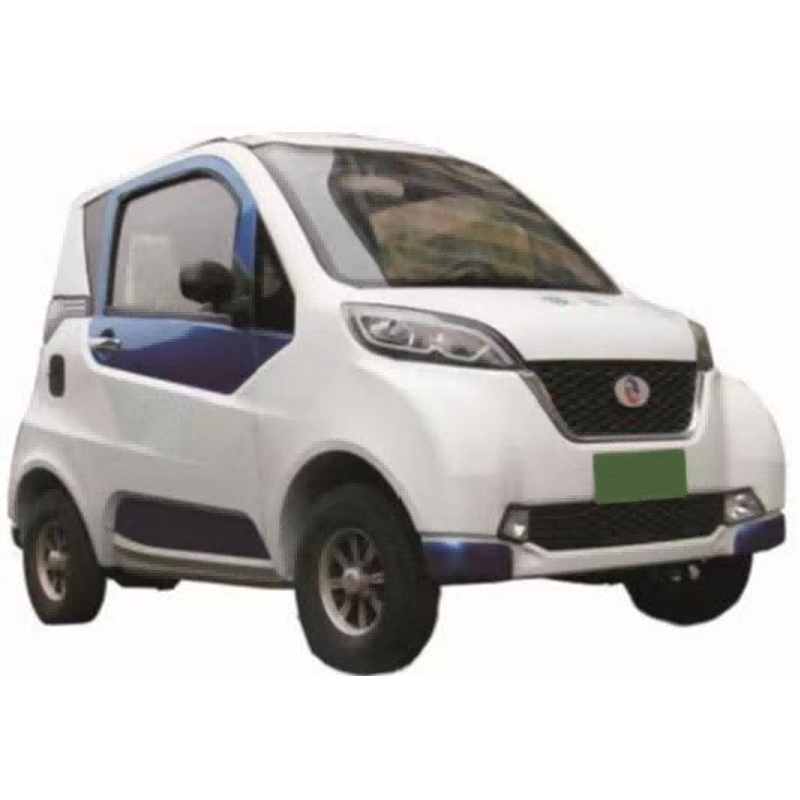

This product is a Miniature four-wheel Hydrogen Power Vehiele independently developed by our company, with complete independent intellectual property rights. This product uses hydrogen fuel cells as the energy system. The hydrogen in the high pressure carbon fiber hydrogen storage tank is fed into the reactor through the integrated decompression and pressure regulation valve. In an electric reactor, hydrogen reacts with oxygen and is converted into electricity. Compared with rechargeable battery cars, its most prominent advantages are short inflation time, long endurance, hydrogenation 2-3 minutes can be filled.
Model number |
JRD-S1KW48V |
|||||
Technical standard |
Measured data |
|||||
Rated power (w) |
1000 |
1300 |
||||
Rated voltage (V) |
48 |
50 |
||||
Rated current (A) |
20.8 |
26 |
||||
Dc voltage range (V) |
48-73 |
50 |
||||
Efficiency (%) |
≥50 |
≥53 |
||||
Oxygen purity (%) |
≥99.99(CO<1ppm) |
99.99 |
||||
Hydrogen pressure (πpa) |
0.045-0.07 |
0.05 |
||||
Oxygen consumption (ml/min) |
11.76 |
15.12 |
||||
Operating ambient temperature (° C) |
-5-35 |
28 |
||||
Operating ambient temperature (RH%) |
10-95(No mist) |
60 |
||||
Storage ambient temperature (° C) |
-10-50 |
|||||
Noise (db) |
≤60 |
|||||
Vehicle size (cm) |
255*135*155 |
Weight (kg) |
460 |
|||
Oxygen storage tank volume (L) |
9 |
Weight (kg) |
4.9 |
|||
Reactor size (cm) |
33*9.1*16.8 |
Weight (kg) |
4.57 |
|||
System size (cm) |
33*12.9*16.8 |
Weight (kg) |
5.36 |
